How 3D Scanning Works

Background for working with the lab’s Creality Raptor Pro: when 3D scanning is the right tool, and how the scanner actually captures geometry. Read this before your first scan — the assignments assume it.

When should I use 3D scanning?

Understanding when a 3D scanner is the right tool for the job — and when it’s not — will save you time and effort.

3D scanning is best used in cases where metrology using manual instruments such as calipers, micrometers, or even Coordinate Measuring Machines (CMMs) becomes impractical — particularly when dealing with complex geometries, large volumes of measurement points, or freeform surfaces.

An important distinction between calipers and a 3D scanner is accuracy. While even cheap calipers can reliably perform with an accuracy of 0.0005″ (0.01 mm), the Creality Raptor Pro has been tested to produce 0.1–0.2 mm accuracy in practical scanning settings (Unpacking the 20 Micron Accuracy Claim – Creality Scan Raptor PRO). For many cases, accuracy this coarse is unusable.

Still, there are many cases in which precise geometric tolerance is not the goal. One job where 3D scanning excels is freeform scanning. When measuring things like automotive body panels or objects with various angles, it can be difficult or entirely impossible to determine measurements using calipers and protractors. In these cases, 3D scanning can be quite precise (It’s Time To Put A 3D Scanner In Your Toolbox).

Below is a simple tradeoff table between calipers and 3D scanners.

Criteria	Digital calipers	3D scanner
Typical accuracy	±0.01 mm	±0.05–0.2 mm (hobby-class)
Measurement range	0–150 mm (typical)	~5 mm – several meters
Cost	$$ ($20–$500)	$$$$ ($500–$10,000)
Freeform-capable?	No	Yes
Contact required?	Yes	No
Speed	Moderate (one point at a time)	Fast capture; slow post-processing
Skill required	Low–moderate	Moderate–high
Output	Single discrete measurements	Full 3D surface mesh
Best for	Diameters, depths, steps, simple geometry	Organic shapes, reverse engineering, full-surface inspection
Limitations	Cannot characterize curves or complex surfaces	Expensive; requires software and a powerful computer; cannot measure hidden/internal features

How the scanner sees: infrared vs. LASER

The Creality Raptor Pro operates in three scanning modes: NIR (Near-Infrared) Structured Light, 7 Parallel Blue Laser Lines, and 22 Cross Blue Laser Lines.

Infrared (NIR) structured light works by projecting an invisible speckle pattern of infrared light onto the object. Two cameras observe how that pattern deforms across the surface, and the scanner reconstructs a 3D mesh from those deformations. Because the entire field of view is captured at once, NIR mode is fast — the Raptor Pro captures up to 3,580,000 measurements per second at 30 fps in this mode.

Laser scanning works similarly: the scanner projects one or more lines of blue laser light across the object while cameras measure where the line bends or shifts. The Raptor Pro’s blue lasers (405 nm wavelength) trace these lines across the part at up to 60 fps, building up a point cloud row by row.

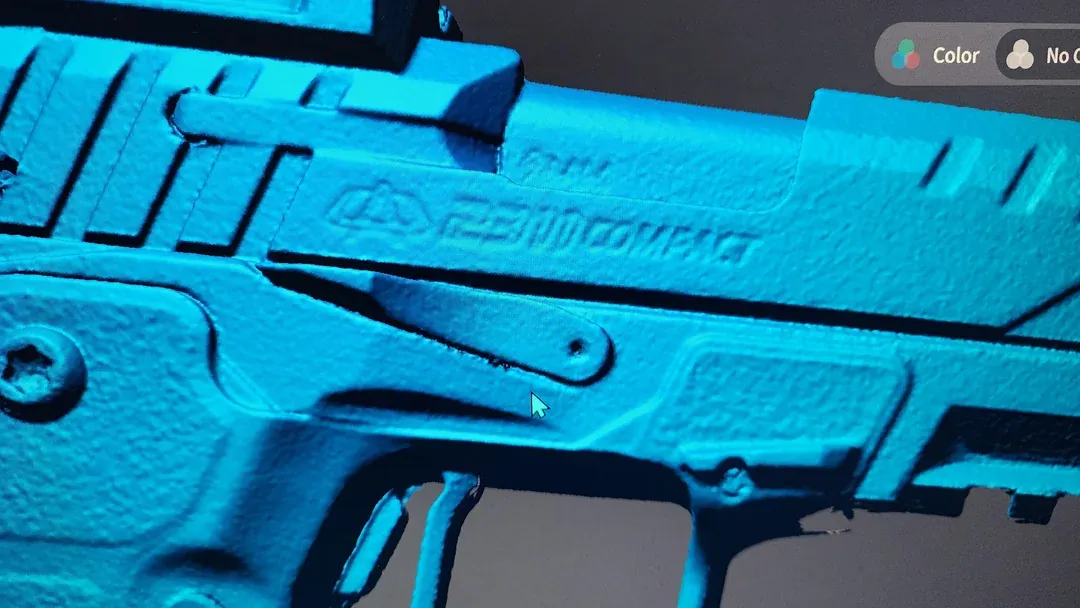

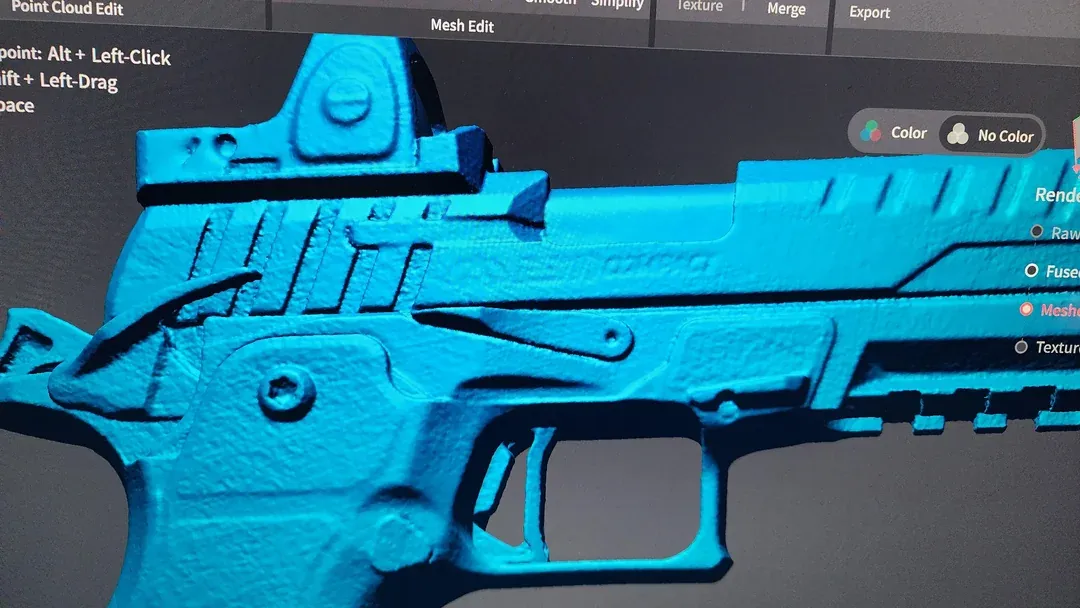

(Left) Scan using cross lines. (Right) Scan using parallel lines. (source)

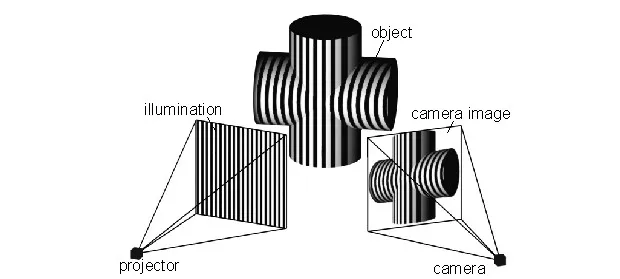

Structured-light 3D scanning. (source)

NOTE

Both modes use structured light — they project a known pattern and measure its deformation. The difference is the light source: NIR uses a broadband infrared projector casting a dot/speckle pattern, while the laser modes use coherent blue laser diodes casting precise lines.

For the practical side — which mode to pick for a given object, and how the scanner tracks its own position while you move it — see the manual’s Choosing scan and tracking modes section.
